IBM API Connect includes a native OAuth provider that turns any API Connect catalog into a full Authorization Server.
This post walks through the entire life-cycle — from understanding OAuth 2.0 flows and designing scopes, to configuring the provider in API Manager, protecting an API, consuming it through the Developer Portal, and inspecting tokens via the introspection endpoint.

The worked example uses the Client Credentials grant (called Application in API Connect) with a confidential client and an API deployed on the DataPower API Gateway.

OAuth 2.0 Flows in Brief

OAuth 2.0 defines several grant types, each suited to a different client/resource-owner situation.

Grant type APIC name Use case
Client Credentials Application Machine-to-machine, no user involved
Authorization Code Access code Web / mobile apps acting on behalf of a user
Implicit Implicit Legacy browser SPAs (not recommended for new work)
Resource Owner Password Resource Owner – Password Trusted first-party CLIs; migrating from basic auth
sequenceDiagram
    autonumber
    actor Client as Client Application
    participant APIC as API Connect (OAuth + Gateway)
    participant API as Protected API

    Note over Client,APIC: Client Credentials (Application) flow
    Client->>APIC: POST /oauth2/token<br/>grant_type=client_credentials<br/>scope=accounts:read<br/>Authorization: Basic b64(client_id:secret)
    APIC-->>Client: 200 { access_token, token_type, scope, expires_in }

    Client->>APIC: GET /accounts<br/>Authorization: Bearer access_token
    APIC->>APIC: Validate token and check scope
    APIC->>API: Forward request (token validated)
    API-->>APIC: 200 { accounts: [...] }
    APIC-->>Client: 200 { accounts: [...] }

Why client credentials for this example?
APIs consumed by back-end services, daemons, or integration flows have no interactive user.
Client credentials is the right choice: the application authenticates directly with its own identity (client ID + secret) and obtains an access token tied to the application — not to any user.

Scopes — Design and Best Practices

A scope is a named permission string that travels inside the access token.
The gateway enforces it by comparing the scopes in the token against the scopes declared in the API security requirement.

Naming convention

<resource>:<action>
Example scope Meaning
accounts:read Read (GET) operations on the Accounts resource
accounts:write Mutating (POST / PUT / PATCH / DELETE) operations
orders:read Read orders
admin:all Elevated administrator access

Rules of thumb:

  1. Least privilege — define the narrowest scope that covers the use case. Never expose a single wildcard scope for all operations on a resource.
  2. Case-sensitive per RFC 6749 — stick to lowercase with colons as separators.
  3. Avoid action-only scopes — read, write without a resource prefix collide between APIs sharing the same provider.
  4. Define a default scope in the provider when all your APIs require at least one read scope, so that misconfigured requests receive a sensible fallback instead of an opaque error.
  5. Version scopes with your API only when breaking — accounts:read:v2 adds noise; prefer it only when the shape of the resource fundamentally changes.

How scopes are checked by the gateway

Scope validation in API Connect follows two stages:

  1. Standard check — the gateway compares the scopes in the access token against the list declared in the API’s security definition. A mismatch returns HTTP 401 or 403 depending on the gateway version.
  2. Advanced scope check (optional) — an external URL is called at token generation or after token validation to let override or refine the granted scope

APIC Configuration Walkthrough

Step 1 — Create the Native OAuth Provider (Resources)

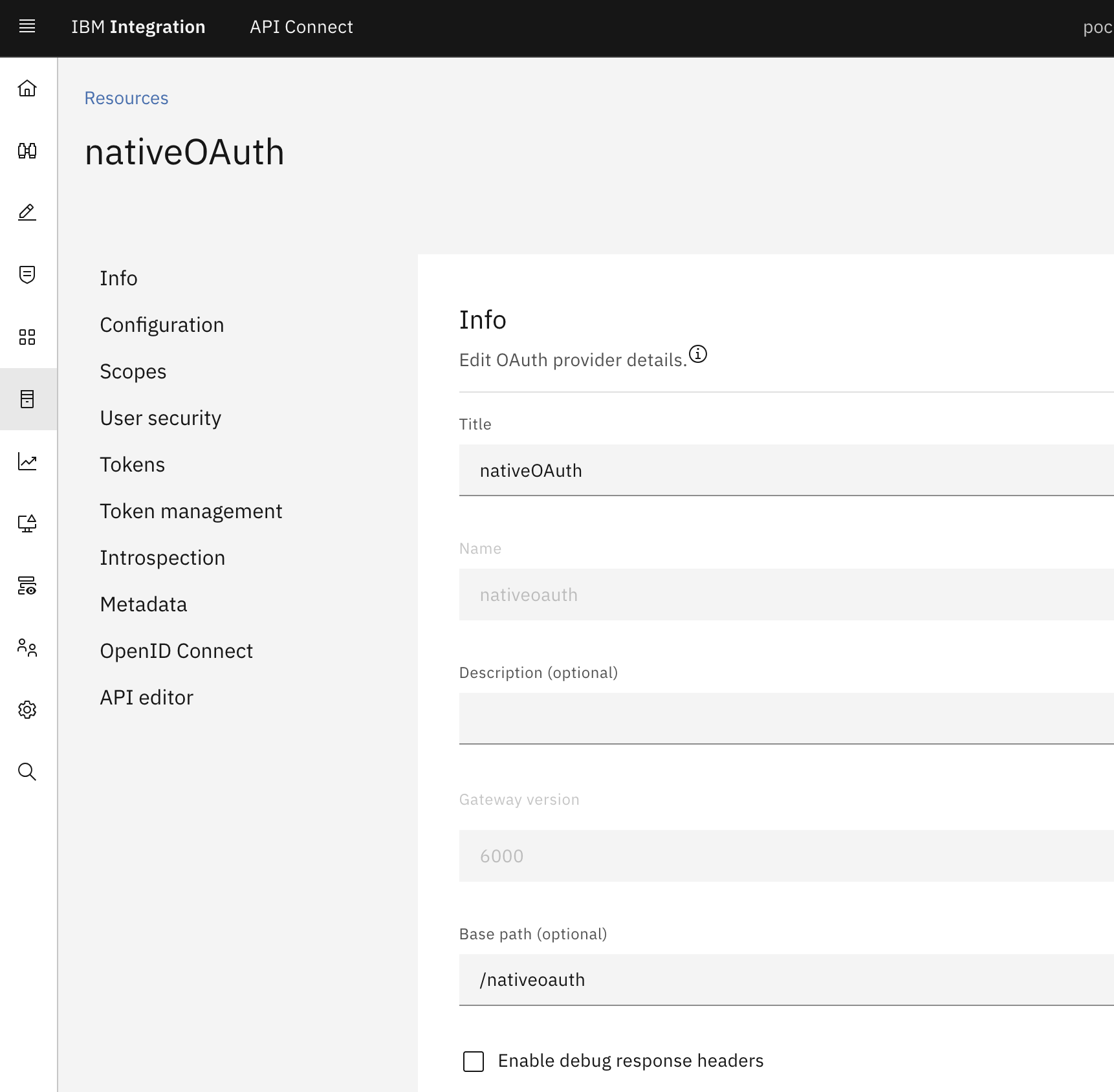

The OAuth provider is a reusable resource in API Manager.

  1. Log into API Manager.
  2. Navigate to Resources → OAuth Providers.
  3. Click Add → Native OAuth Provider.

  4. Fill in Basic settings:

    Field Value
    Title Native OAuth
    Name native-oauth (auto-filled)
    Gateway type DataPower® API Gateway
    Grant types Application (Client Credentials)
    Client types Confidential
    Authorize path /oauth2/authorize (default)
    Token path /oauth2/token (default)
    Scope 1 accounts:read Read access to accounts
    Scope 2 accounts:write Create and update accounts

    Confidential client means the client is expected to keep its secret safe (e.g., a back-end service). Public clients cannot reliably keep secrets — use PKCE with Authorization Code for those.

  5. Click Next / Save.

The Native OAuth provider is created:

Step 2 — Configure Tokens

  1. Click Tokens in the sidebar.

  2. Recommended settings for a back-end flow:

    Field Value
    Access token TTL 3600 (1 hour)
    Maximum consent TTL 86400 (24 hours)
    Refresh token Disabled — not applicable for client credentials
  3. Click Save.

Step 3 — Enable Introspection

  1. Click Introspection in the sidebar.
  2. Select the Enable introspection checkbox. The path /oauth2/introspect is filled automatically.
  3. Click Save.

Step 4 — Attach the Provider to a Catalog

  1. Navigate to the Catalog where the API will be published.

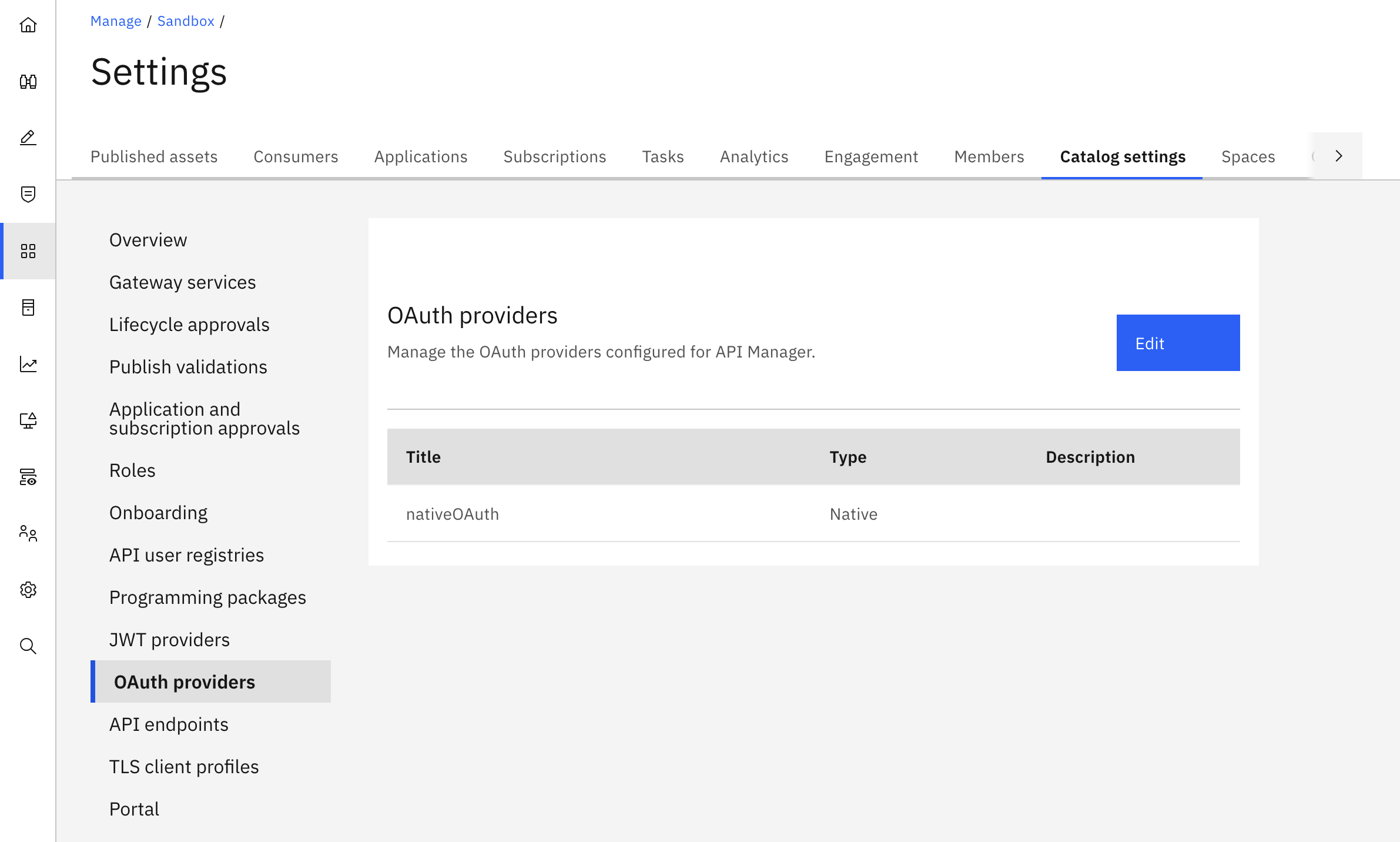

  2. Go to Catalog Settings → OAuth providers.
  3. Add native-oauth to the catalog.

Without this configuration you will not be able to deploy the API secured with OAuth

API Studio v12 Project

All files below live in the project apic-native-oauth.
Download them individually from the links in the file list, or clone the whole folder.

File overview

File Kind Purpose
accounts-spec.yml OpenAPI 3.0 API specification with OAuth security scheme
accounts-api.yml API API Studio API asset
accounts-assembly.yml DataPowerAssembly DataPower gateway assembly
accounts-plan.yml Plan Product plan (unlimited)
accounts-product.yml Product Product wrapping the API
accounts-test.yml test Test cases
accounts-environment.yml environment Test environment variables
accounts-get-200.yml assertion Assertions for GET /accounts success
accounts-no-token.yml assertion Assertion for unauthenticated call
accounts-post-forbidden.yml assertion Assertion for scope-rejected call

OpenAPI spec — security scheme

The critical part of accounts-spec.yml:

components:
  securitySchemes:
    nativeOAuth:
      type: oauth2
      x-ibm-oauth-provider: native-oauth    # must match the provider name in API Manager
      flows:
        clientCredentials:
          tokenUrl: https://$(catalog.url)/native-oauth/oauth2/token
          scopes:
            accounts:read: Read access to accounts
            accounts:write: Create and update accounts

The value of x-ibm-oauth-provider should match the Native OAuth provider that you previously created. The Native OAuth provider needs to be configured on the catalog where the API will be deployed At deployment, the gateway will search for this definition. If it is not configured an error will be generated

$(catalog.url) is an API Connect context variable that resolves to the catalog’s public endpoint at runtime. The security requirement on each operation lists which scope(s) the token must carry:

paths:
  /accounts:
    get:
      security:
        - nativeOAuth:
            - accounts:read
    post:
      security:
        - nativeOAuth:
            - accounts:write

You can add on an existing API the OAuth configuration using the native OAuth provider that you created previously using the API Studio form.

In order to be able to configure the OAuth security scheme using the OAuth provider configured in API Manager, your API needs to be configured with a **DataPower API Gateway** policy sequence. This is because native OAuth Provider is currently only supported with this type of gateway and the API Studio enforces it.

Steps to configure an existing API using the form:

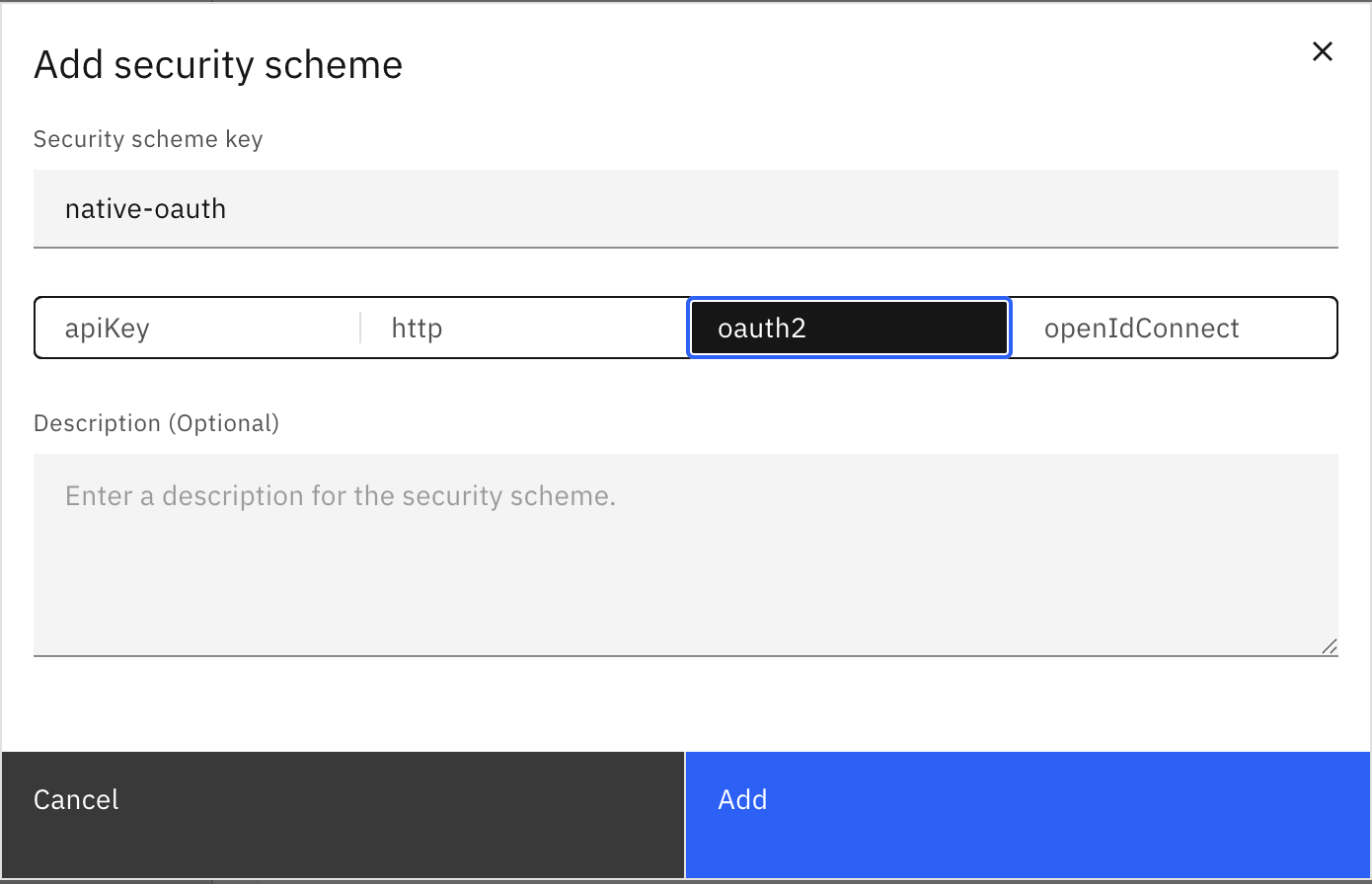

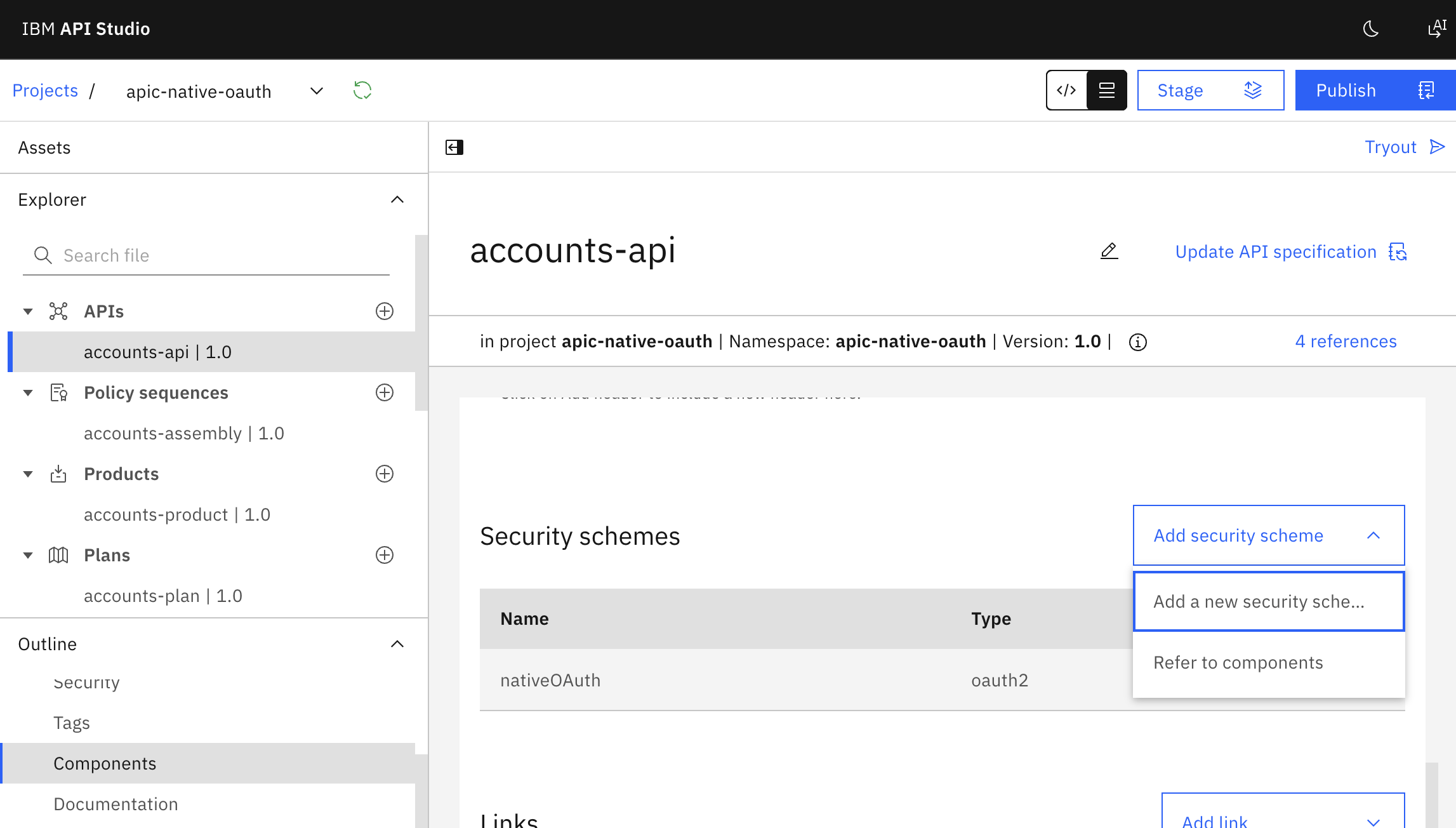

  1. Select your API and click on Components in the Outline view
  2. Scroll down and select “add security scheme”
  3. Provide a name for the security scheme key (here in the image native-oauth) and select oauth2. click add

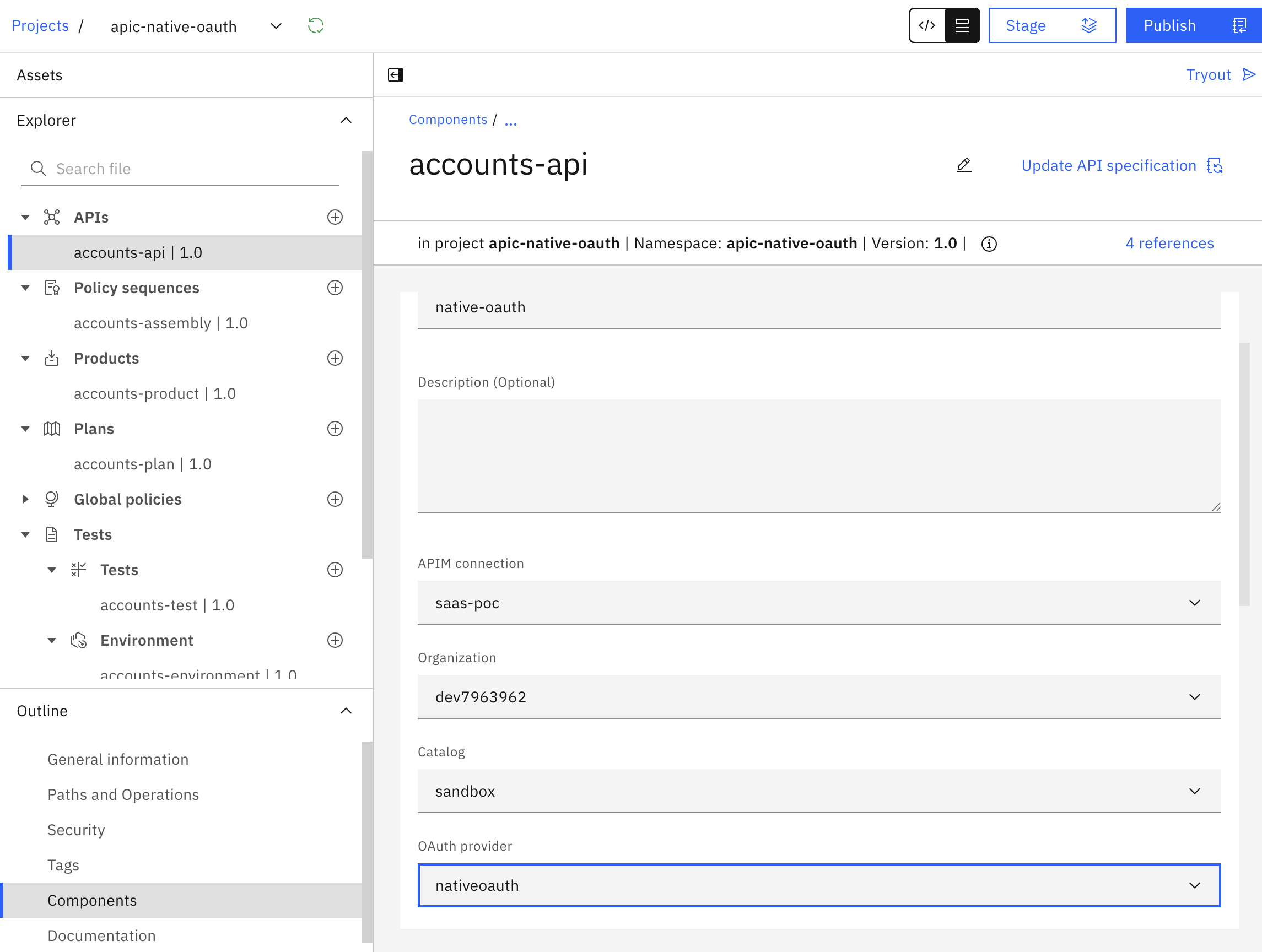

  4. Select the right OAuth provider by connecting to the APIM configuration: api connect manager url, organisation and sandbox where the Native OAuth provider is configured you need to be connected to an APIC manager if you are using API Studio .

The configuration from the OAuth provider is loaded.

DataPower Assembly

accounts-assembly.yml is a DataPowerAssembly kind.

The gateway handles OAuth enforcement automatically based on the security scheme in the OpenAPI spec — no explicit OAuth policy is needed in the assembly.

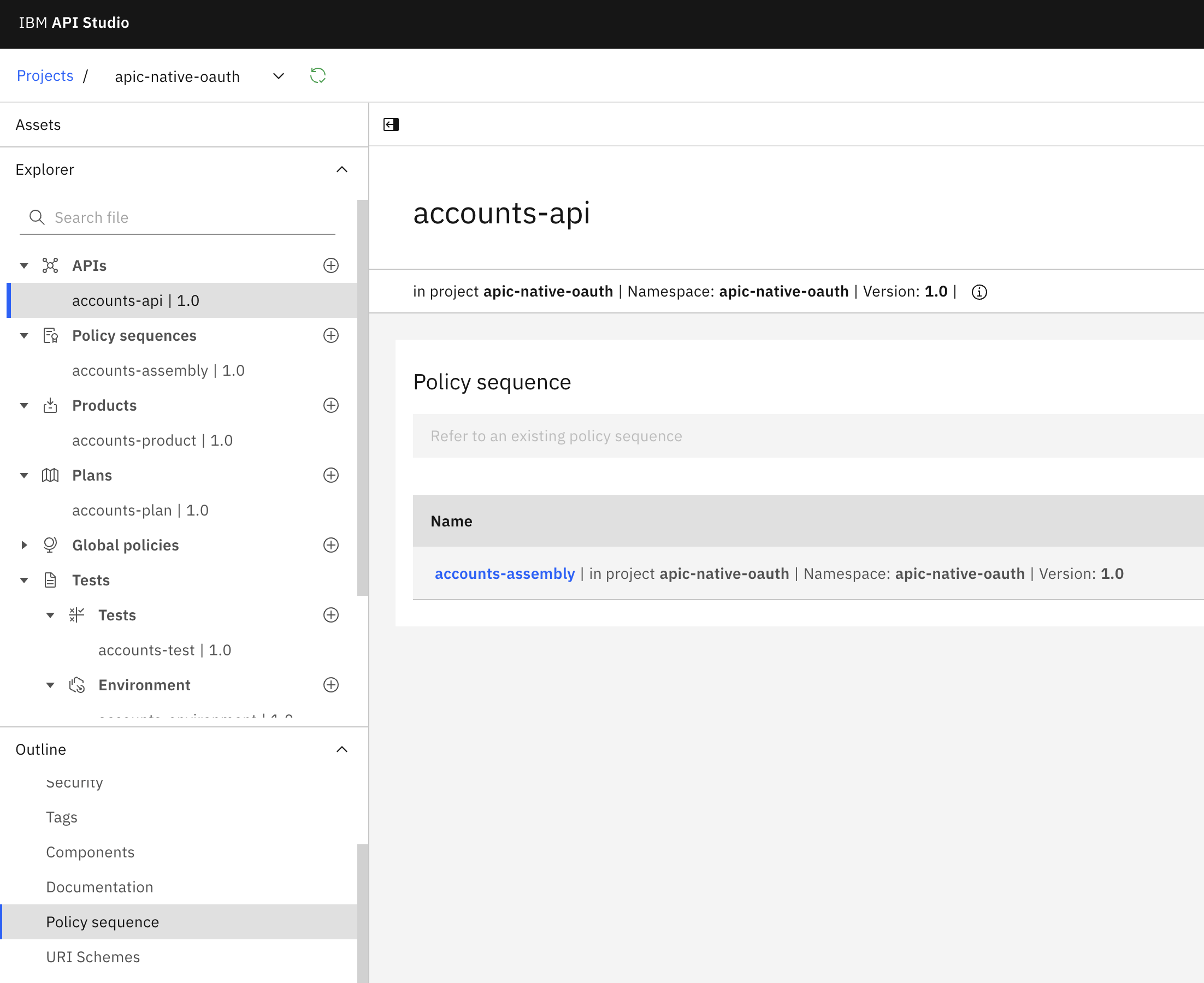

The assembly routes by operation and reads the validated token details from OAuth context variables and returns it to the caller (no backend invoque):

- gatewayscript:
    title: Return accounts and token details
    source: |-
      var rsp = {
        accounts: [ ... ],
        caller: {
          client_id: context.get('oauth.verified_access_token.client_id'),
          scope: context.get('oauth.verified_access_token.scope')
        }
      };
      context.set('message.headers.content-type', 'application/json');
      context.set('message.status.code', 200);
      context.message.body.write(JSON.stringify(rsp));

Key OAuth context variables available after token validation (DataPower API Gateway):

Variable Description
oauth.verified_access_token.client_id The subscriber’s client ID
oauth.verified_access_token.scope Scopes granted by the token
oauth.verified_access_token.grant_type client_credentials
oauth.verified_access_token.not_after Token expiry (Unix epoch)

Test cases

accounts-test.yml contains three requests:

  1. GET with valid bearer token → expects HTTP 200 and a JSON body with caller.
  2. GET without any token → expects HTTP 401.
  3. POST with a read-only token (the environment access_token only carries accounts:read) → expects HTTP 4xx.

Run the tests from API Studio after setting the access_token environment variable (see the section on obtaining tokens below):

You can run the test using API Connect CLI (if installed):

apic test apic-native-oauth --localDir .

Obtaining an Access Token

In the example, Client Credentials grant type as been used.
In this flow, an application authenticates using its own credentials and receives an access token that can be used to invoke protected APIs.

The process is straightforward:

  1. Step 1 - Subscribe to the API Product From the Developer Portal, create an application and subscribe it to the API Product that exposes the desired API. As part of the subscription process, the application receives a Client ID and Client Secret that uniquely identify it. Subscribing to the API can also be done from the API Manager UI.
  2. Step 2 - Identify the Token Endpoint In the Developer Portal, review the API documentation to locate the OAuth token endpoint

    Note: in the current Dev Portal release, the token url is found by inspecting the openAPI specification that can be downloaded from the API Documentation section of the API page in the DevPortal. This endpoint is provided by the OAuth provider configured in API Connect and is used to request access tokens.

  3. Step 3 - Request an Access Token Use the application’s Client ID and Client Secret to call the token endpoint with the client_credentials grant type. If the credentials are valid, the OAuth provider returns an access token.

Step 1. Subscription using the Dev Portal

  1. Open the Developer Portal
  2. Navigate to the section Asset Gallery, Select your API
  3. Select API Products section and click on the Product
  4. On the Plans section, click subscribe to the plan you want to use
  5. Click Create new subscription → give it a name
  6. Select your application
  7. Note down the Client ID and Client Secret

Step 2. Get the OAuth token url

  1. Open the Developer Portal
  2. Navigate to the section Asset Gallery, Select your API
  3. Select API Documentation section and click on the api.txt to download the OpenAPI specification
  4. The token url is provided in the openAPI.

Note: the token url follows by default the pattern https://<gateway-host>/<oauth-provider-name>/oauth2/token

Step 3. Request an access token

Once you have obtained the Client ID and Client Secret of your subscribed application, you can request an access token from the OAuth token endpoint.

The Client Credentials grant type uses an HTTP POST request with a content type of application/x-www-form-urlencoded.
The request must contain the grant_type parameter set to client_credentials.
The client credentials are provided through HTTP Basic Authentication.

curl -X POST https://api.example.com/native-oauth/oauth2/token \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -u "<client-id>:<client-secret>" \
  --data-urlencode "grant_type=client_credentials" \
  --data-urlencode "scope=accounts:read customer.write"

Note: When an API is consumed through a user-facing application, the Authorization Code grant type is typically used.
The user authenticates with the organization’s Identity Provider, while the application authenticates itself using its client credentials.
The resulting access token represents both the authenticated user and the consuming application.

If the request is successfully authenticated, the OAuth provider returns a Bearer access token.
This token can then be included in the Authorization header of subsequent API requests to access protected resources.

Expected response:

{
  "token_type": "Bearer",
  "access_token": "AAEkNjV...",
  "scope": "accounts:read",
  "expires_in": 3600
}

Calling the Protected API

The protected API is called by providing the Bearer token.
If the token is valid and contains the right scopes, the API can be accessed.

curl -k -X GET \
  "${GATEWAY_URL}/accounts/accounts" \
  -H "Authorization: Bearer ${TOKEN}" \
  -H "Accept: application/json"

A Bruno collection is also provided.

Bruno is an open-source API client (Git-friendly, no cloud account required). Create two requests in a Bruno collection.
The first one, get-token.bru, requests the token and stores it in the environment.
The second one, get-accounts.bru, calls the API with that token.
A third request, introspect.bru, is also included — see the Token Introspection section below.

Set the following variables in your Bruno environment (environments/local.bru):

Variable Example Notes
gateway_url https://my-catalog.example.com/sb Your catalog gateway endpoint
provider_path native-oauth Base path of the OAuth provider
client_id (from the Portal) Replace the YOUR_CLIENT_ID placeholder
client_secret (declared in vars:secret) Fill in Bruno’s Secrets panel; never committed to git

Download the complete Bruno collection: bruno/get-token.bru, bruno/get-accounts.bru, bruno/introspect.bru, bruno/environments/local.bru (or clone the blog repository and open the assets/files/apic/apic-native-oauth/bruno/ folder directly in Bruno).

Token Introspection

Introspection lets an authorized holder examine the metadata of an existing token without parsing it.
It conforms to RFC 7662.

The introspection endpoint is:

POST /<catalog-base-path>/native-oauth/oauth2/introspect

The caller must authenticate with the same client ID and client secret used to obtain the token (Basic authentication):

curl -k -X POST \
  "${GATEWAY_URL}/${PROVIDER_PATH}/oauth2/introspect" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  --data-urlencode "token=${TOKEN}" \
  --data-urlencode "token_type_hint=access_token" \
  -u "${CLIENT_ID}:${CLIENT_SECRET}"

Example response for an active token:

{
  "active": true,
  "token_type": "bearer",
  "client_id": "3f1e2d9a-0001-4abc-bdef-112233445566",
  "scope": "accounts:read",
  "exp": 1728940800,
  "expstr": "2026-10-14T23:59:59Z",
  "iat": 1728937200,
  "nbf": 1728937200,
  "grant_type": "client_credentials",
  "miscinfo": "[r:gateway]"
}

For an expired or revoked token, active will be false:

{ "active": false }

Leave a comment

You may also enjoy

Ace Wssec

4 minute read

Introduction This post provides a very short summary on how to configure and deploy an ACE flow that is using WSSEC.
